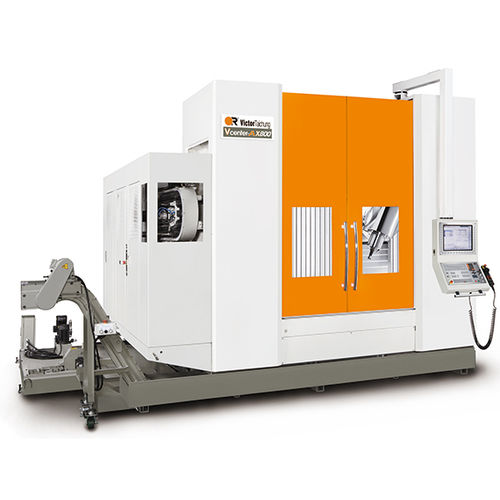

5-axis CNC machining center VCENTER-X800

verticalwith rotary tablecutting

Vertical Five-Axis Machining Center VCENTER-AX800 (5-axis machining) With the rotary table built next to the fixed table, this innovative model Vcenter-AX800 vertical machining center is equipped with a swivel head on the traveling column to implement 5-axis machining on large part (diameter up to 1000mm). Roller-cam-drive® mechanism for both rotary axes ensures sufficient rigidity for 4+1 axis heavy machining, and high rotation speed helps shorten overall cycle time compared as conventional worm gear mechanism. Swivel head (B-axis) and rotary table (C-axis) facilitate 5-axis machining of large parts, up to 1000mm in diameter. C-axis table is clamped at high torque 3433 Nm for heavy cutting. The B-axis swivel head includes a Hirth coupling with 1° increm ent further enhancing the rigidity, and 4+1 axis machining capability. BBT-40 spindle 15000rpm (22kW)
