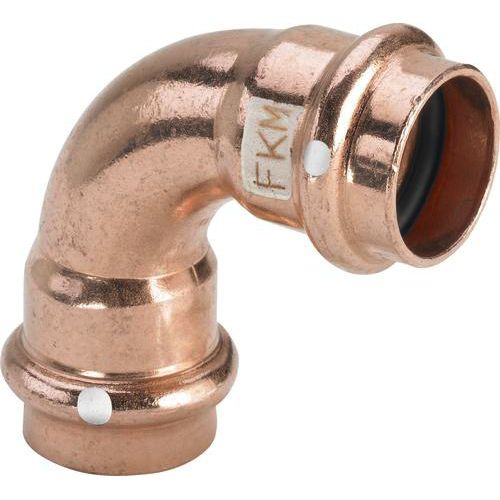

Hydraulic fitting Profipress S
for gascrimpelbow

Hydraulic fitting - Profipress S - Viega GmbH & Co. KG - for gas / crimp / elbow
Hydraulic fitting - Profipress S - Viega GmbH & Co. KG - for gas / crimp / elbow
Hydraulic fitting - Profipress S - Viega GmbH & Co. KG - for gas / crimp / elbow - image - 2
Hydraulic fitting - Profipress S - Viega GmbH & Co. KG - for gas / crimp / elbow - image - 3
Hydraulic fitting - Profipress S - Viega GmbH & Co. KG - for gas / crimp / elbow - image - 4
Hydraulic fitting - Profipress S - Viega GmbH & Co. KG - for gas / crimp / elbow - image - 5
Hydraulic fitting - Profipress S - Viega GmbH & Co. KG - for gas / crimp / elbow - image - 6
Add to favorites
Compare this product


Characteristics

Applications
hydraulic, for gas
Attachment
crimp
Configuration
elbow
Material
copper, bronze
Other characteristics
poppet, vacuum
Diameter

Max.: 35 mm
(1.378 in)

Min.: 12 mm
(0.472 in)

Operating pressure

0.3 psi, 14.5 psi, 43.5 psi, 94.3 psi

Description

Flow-​optimised press connector system made of copper (99.9 % Cu-​DHP), gunmetal or silicon bronze for copper pipes. Press connectors for protecting the sealing element equipped with cylindrical pipe guide. The pressing force is located before and behind the sealing element seat. Suitable for concealed and pre-​wall installations of riser pipes and floor installations. Marking Manufacturer, pipe dimension, batch, approval markings (DVGW), white dot on press end, white rectangle with inscription »FKM« Sealing elements FKM (fluorocarbon rubber), matt black, pre-​assembled The use of Profipress S and Profipress connectors with FKM sealing elements in potable water and gas installations is not permitted! Tools The functional safety of Viega press connector systems depends primarily on the faultless condition of the press tools used. For the manufacture of press connections, Viega recommends the use of Viega press tools. Viega press tools have to be regularly maintained by authorised service partners. Areas of application Solar installations (flat plate/vacuum collector) District heat supply systems Low-​pressure steam systems Use for systems with additives (e.g. anti-​corrosion or anti-​freeze agents in heating water) or areas of application other than those described must be approved by Viega. Note Use of the system for areas of application and media other than those described must be agreed in consultation with Viega! Detailed information about applications, restrictions and national standards and directives can be found in the product information, either printed or on the Viega website. Note – Standards and approvals Press connectors tested in accordance
