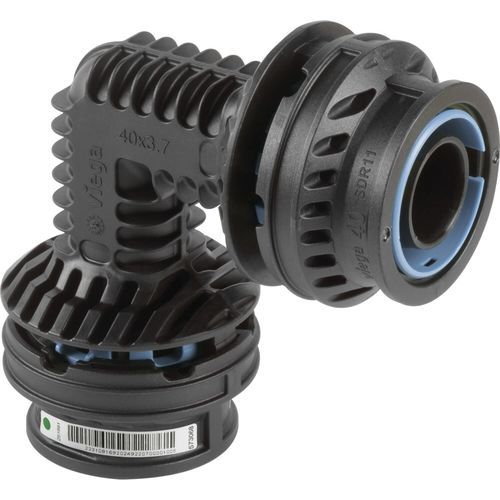

Hydraulic connector Geopress K

DINpolyamidePE

Press connector system made of fibre-​glass reinforced polyamide. Permitted pipe types PE 80/100/100-RC and PE-​X of SDR series 11. Sealed inside. Support sleeve function integrated into the press connector. Suitable for underground, municipal potable water supply pipelines. Tapping valves For connecting the service connection to unpressurised and pressurised supply lines. Permitted pipe types PE 80/100/100-RC and PE-​X. Manufacturer, pipe dimension, batch, green dot at press end when used for potable water, traceability code for component tracing Press connector with SC‑Contur Inadvertently unpressed connections become visibly leaky when the system is filled. Tools The functional safety of Viega press connector systems depends primarily on the faultless condition of the press tools used. Viega recommends the use of Viega press tools for pressing Viega press connectors. Viega press tools have to be regularly maintained by authorised service partners. Areas of application Potable water Geothermal energy / cold local heat Use of the system for areas of application and media other than those described must be agreed in consultation with Viega! Detailed information about applications, restrictions and national standards and directives can be found in the product information, either printed or on the Viega website. Note – Standards and approvals Permitted pipe types for potable water pipelines and potable water tapping valves: PE-​X in accordance with DIN 16893, DIN 16892, GW 335-A3. PE 80/100/100-RC in accordance with DIN 8074, DIN 8075, DIN EN 12201, GW 335-A2.
