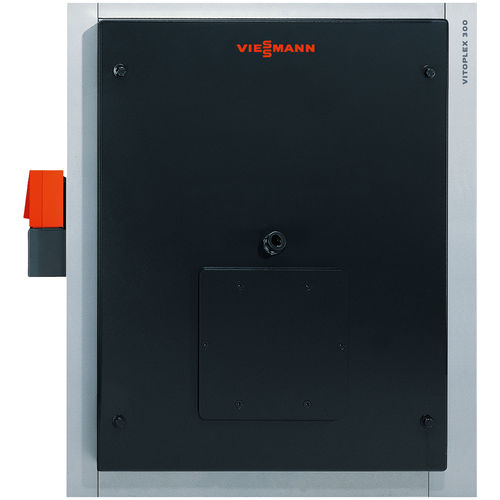

Steam boiler VITOPLEX 300

gasfuel oilthree-pass

Low temperature oil/gas boiler with multi layered convection heating surfaces made from triplex pipes. Standard seasonal efficiency [to DIN] using fuel oil: 90 % Integral Therm-Control start-up system Multi layered convection heating surfaces Standard seasonal efficiency [to DIN] With fuel oil: 90 % (Hs) [gross cv] Multi layered convection heating surfaces For high operational reliability and a long service life Integral Therm-Control start-up system Replaces the shunt pump or constant return temperature raising, thereby saving installation time and costs Optional stainless steel flue gas/water heat exchanger For higher standard seasonal efficiency [to DIN] by utilising condensing technology Three-pass boiler with low combustion chamber loading Thanks to clean combustion with low emissions Walk-on boiler cover From 620 kW – facilitates installation and maintenance Easy to use Vitotronic control unit With colour touchscreen for excellent ease of use Integral LAN interface For internet communication and integral WiFi for service interface Economical and safe operation of the heating system Vitotronic digital control system with communication capability Standardised LON bus Enables complete integration into building management systems Three-pass boiler with integral start-up control The Vitoplex 300 three-pass boiler, with its proven multi layered convection heating surfaces, offers particularly economical, clean and reliable operation.
