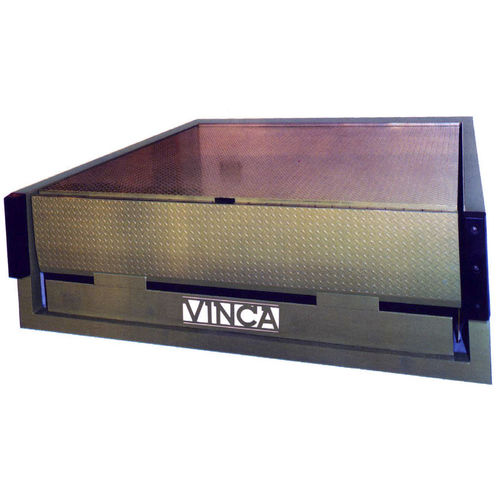

Manual dock leveler RFA

springswing-lip

The self-compensating spring loaded RFA loading ramp, load capacity 6,000 kg, robust and low maintenance, with a folding lip that folds when the ring intended for it is manually pulled. • - With foot protection skirts. • - Anti-slip platform surface with tear plate. • - Self-supporting chassis. • - Available in different dimensions. • - Designed in accordance with the European Regulation UNE-EN 1398. It is made up of a solid self-compensating spring ramp: one set of springs fully compensates the ramp and the other compensates the folding lip: at the end of the manual lift the ramp is released and pre-raised. • - The lip is folded when the ring intended for it is manually pulled. • - With marked foot protection skirts. • - Non-slip floor in teardrop sheet metal. • - Two semi-elastic protection stops. • - Support lip with 3-plane generatrix for the perfect fit to the truck bed and the rolling of the trucks. • - With 2 manually operated latches (see “RF” model) for leveling, cross traffic and anti-theft. • - With safety bar for inspection and maintenance.
