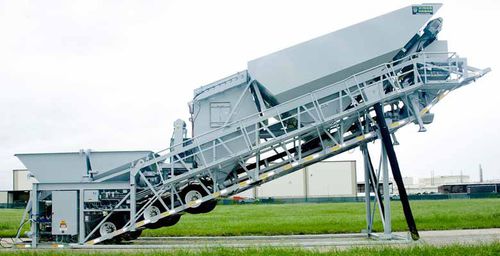

Mobile concrete batching plant HS series

HS SERIES – HAGANATOR DECUMULATOR The Vince Hagan HS Series – Haganator Decumulator mobile concrete batch plant is the perfect choice for on-site projects that require production of 50 to 80 cubic yards per hour. This unit is a patented truss frame design and travels as one piece. One or two compartment decumulative aggregate batcher, single compartment accumulative cement batcher, batch transfer belt, in-truss silo, complete air system and pre-wired electrical all on one truss frame. An overhead aggregate bin can be added anytime in the future which can double production. Self erect models available. This is a great starter plant! PLANT SPECIFICATIONS 14′-2″ steel discharge clearance at loading point 12 cu. yard aggregate and cement batchers 250 to 400 BBL silo 24″ to 36″ batch transfer belt PLANT FEATURES Eliminates one additional load of freight with the exclusive in-truss dust collector In-truss dust collector ducting is mounted on plant and reduces set-up time Foundation not required in most cases, (set-up on steel plates, crane mats) dependent on soil conditions Sets up in five hours or less Two compartment aggregate batcher Fully charge aggregate batcher compartments with front end loader Draw-Off decumulative batching (not dribble batching from front end loader) Pre-wired in EMT conduit to (NEC) National Electrical Code Motor starter NEMA panel is ULC certified Air and water pre-plumbed on the plant All batchers are NTEP certified Plant is completely erected and tested at the factory prior to shipping Available for increased production rate — two separate decumulative aggregate batchers
