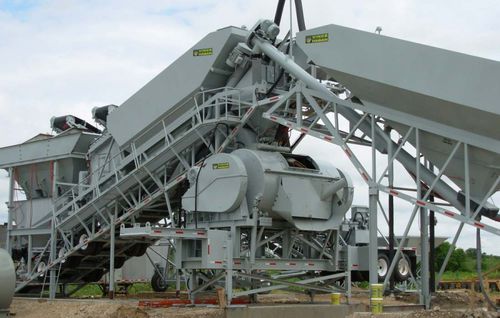

Mobile concrete batching plant HT/CM series

horizontal

HT/CM SERIES – HAGANATOR TRAVEL-ALL CONCRETE BATCH PLANTS CENTRAL MIX BATCH PLANTS Fully mobile concrete batching plant with Horizontal Shaft Spiral Blade Mixer or Hagan TM12 – Tilt Mixer The Vince Hagan HT/CM Series Haganator Travel-All/Central Mix mobile concrete batch plant is the perfect choice for on-site projects or stationary locations where height is a factor and production of 120 to 400 cubic yards per hour is required. This unit is a patented truss frame design and travels as one piece. Overhead aggregate bin, aggregate batcher, cement batcher, batch transfer belt, in-truss silo, complete air system and pre-wired electrical all on one truss frame. Self erecting models are available. PLANT BROCHURE Download a copy of the Horizontal Shaft Spiral Blade Mixer brochure PDF with specifications and features. PLANT BROCHURE Download a copy of the HT Series – Haganator Travel-All brochure PDF with all of the specifications and features. PLANT SPECIFICATIONS 14′-2″ steel discharge clearance at loading point 12 cu. yard aggregate and cement batchers 250 to 400 BBL silo 45 to 100 ton aggregate storage (2, 3 or 4 compartments) 24″ to 48″ batch transfer belt PLANT FEATURES Eliminates one additional load of freight with the exclusive in-truss dust collector In-truss dust collector ducting is mounted on plant and reduces set-up time Foundation not required in most cases, (set-up on steel plates, crane mats) dependent on soil conditions
