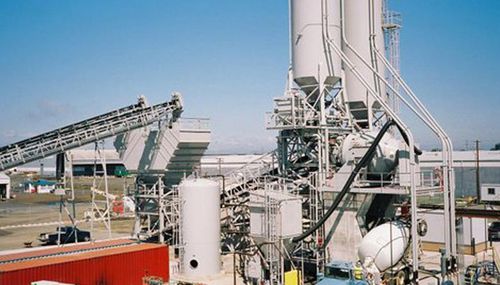

Stationary concrete batching plant HSM/CM series

HSM/CM SERIES – HAGAN STATIONARY MODULAR CONCRETE BATCHING PLANT CONCRETE BATCH PLANTS The Vince Hagan HSM/CM Series stationary modular central mix batch plant is designed for fast set-up and high production with a minimum of delivery and erection costs. By designing the plant with a transportable truss design, we are able to pre-wire, pre-plumb water and the air systems on the truss frame. The HSM plant will provide up to 350 cubic yards an hour production. SPECIFICATIONS 12 cubic yard aggregate and cement batchers 36″ to 40″ batch belt design 60 to 400 ton aggregate storage capacity up to 8 compartments 300 to 1200 bbl. overhead cement storage capacity including optional two-compartment silos The exclusive Hagan 250 to 400 bbl. in-truss silo design allows for the silo to transport on the truss 2″ temper Meter water feed system In-truss or Auxiliary silo has two 10″ or 12″ screw feeders for fast and accurate feed of cements (See screw feeder product sheet for how our screws are different) FEATURES Another feature available for greater cement storage is an auxiliary silo 300 to 1200 bbl. capacity that can straddle the batch belt for compact foundation design Silos can also be made in two compartments Weighed water system with admix manifold Air systems pre-plumbed to all air valves Pre-wired in EMT conduit to (NEC) National Electrical Code Aggregate bin can be fed by your choice of radial stacker, fixed incline feed conveyor with turn head or individual conveyors for each bin Various safety walkways available for ease of service on motors and gates Motor starter NEMA panel is ULC certified
