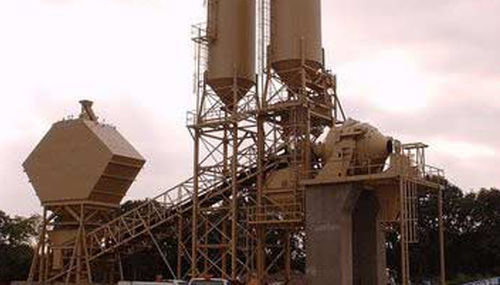

Stationary concrete batching plant LPM/CM series

LPM/CM SERIES – HAGAN LOW PROFILE CENTRAL MIX BATCH PLANT CONCRETE BATCH PLANTS Stationary Low Profile Modular Central Mix Concrete Batching Plant with Hagan TM12-Tilt Mixer The Vince Hagan LPM/CM Series stationary modular concrete batch plant provides for custom design of your batch plant needs. The LPM plant can be used in locations where layout flexibility is required. The LPM central mix plant will provide up to 350 cubic yards an hour production. SPECIFICATIONS 14′-2″ steel discharge clearance at loading point 12 cu. yard aggregate and cement batchers Sets up in five hours or less 250 to 400 BBL silo 45 to 100 ton aggregate storage (2, 3 or 4 compartments) 24″ to 48″ batch transfer belt FEATURES Foundation not required in most cases, (set-up on steel plates, crane mats) dependent on soil conditions Eliminates one additional load of freight with the exclusive in-truss dust collector In-truss dust collector ducting is mounted on plant and reduces set-up time Foundation not required in most cases, (set-up on steel plates, crane mats) dependent on soil conditions Pre-wired in EMT conduit to (NEC) National Electrical Code Motor starter NEMA panel is ULC certified Air and water pre-plumbed on the plant All batchers are NTEP certified
