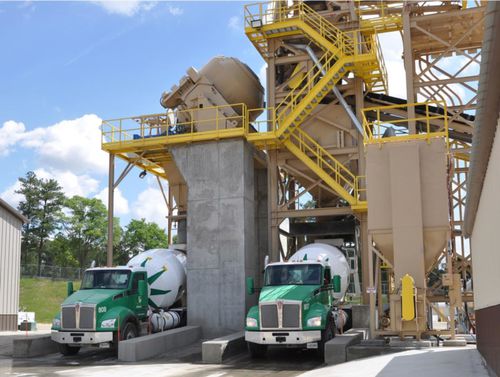

Stationary concrete batching plant DUAL

DUAL ALLEY CENTRAL MIX & HOLDING HOPPER STATIONARY CONCRETE BATCH PLANT CONCRETE BATCH PLANTS Add the exclusive upgrade Vince Hagan Holding Hopper to your high capacity HSM or LPM model plant design and Hagan Stationary TM-12 Tilt Mixer to increase wet and dry batch capacity to up to 300 to 400 cubic yards per hour. The design allows the plant to simultaneously charge two ready mix trucks while the next batch is being weighed up. As soon as the holding hopper or tilt mixer is empty the batchers are ready to load into the empty lane and weigh up the next batch for faster production. This allows for three batches to be available for trucks waiting to be charged. SPECIFICATIONS High-speed charging with 36″ or 48″ batch belt 36″ to 48″ batch belt design 60 to 400 ton aggregate storage capacity up to 8 compartments 300 to 1200 bbl. overhead cement storage capacity including optional two-compartment silo Auxiliary silos from 300 to 1200 bbl. cement storage capacity including optional two-compartment silo Auxiliary silos straddle the batch belt for compact foundation design Auxiliary silo has 7″ to 12″ screw feeders for fast and accurate feed of cements 12 cu. yd aggregate and cement batchers 2″ temper metered water feed system FEATURES One 12 cu. yd capacity hopper with separate storage for the aggregate, cement and water for a complete batch and second lane is a TM-12 Tilt Mixer Dual discharge on the cement scale for holding hopper and TM-12 Tilt Mixer Dual discharge on the water scale for holding hopper and TM-12 Tilt Mixer Flop tray assembly on the batch belt to divert the aggregate to holding hopper and TM-12 Tilt Mixer
