Stationary concrete mixer TM-12

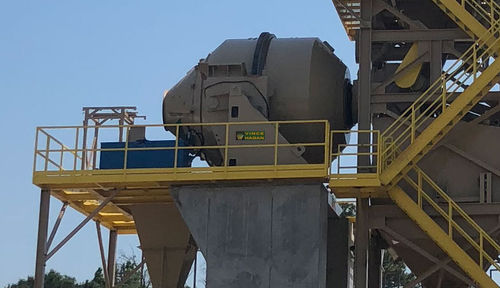

TM-12 – STATIONARY CONCRETE TILT MIXER CONCRETE TILT MIXERS The Vince Hagan TM-12 Stationary Tilt Mixer was designed with the end user in mind. Our engineering staff sat down and put all our ideas, innovations, thoughts and imaginations together to develop a tilt mixer that combines all the necessary elements for unparalleled performance. Its heavy-duty design ensures longevity for years to come. It also provides easy access to all moving parts making it easy to perform daily maintenance. Our drive bull ring gear is the largest in the industry. NEWEST FEATURES New smart mixer allows for online customized remote access control Diagnostics allow service department to remotely troubleshoot Notifications of possible service issues 14 cubic yard capacity for a true 12 yard mix without spillage Poly-covered blades SPECIFICATIONS 45 sec. mix time @ 1″-3″ slump (Paving Use) 30 sec. mix time @ 4″-6″ slump (General Use) 14 cu yard capacity for true 12 yard mix at high slump without spillage Twin 75HP Drives FEATURES PMMD (Plant Mixer Manufactures Division) performance rated Easily accessible for standard maintenance Standard Cushion Return Easily Removable Cone Adjustable Tilt Speed with over 60 Tilt Poly Inlet Ring/Seal for Longer Life and easy replacement Emergency tilt connections Standard centralized lubrication points Heavy duty pivot points Center tilt for better balance and ease of discharge All production rates theoretical
