Polyester conveyor belt
concretefor inclined conveyors

polyester conveyor belt
polyester conveyor belt
Add to favorites
Compare this product


Characteristics

Material
polyester, concrete
Applications
for inclined conveyors

Description

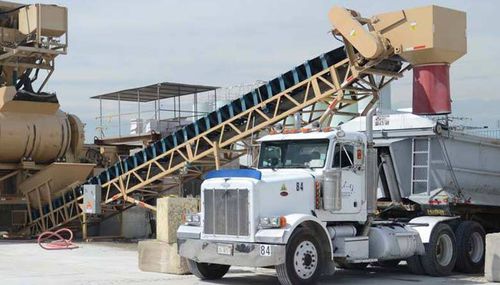

CONCRETE WET BELT CONVEYOR CONVEYORS Choose the Vince Hagan portable wet belt conveyor is designed to move wet concrete from the Hagan Patented Horizontal Mixer into a customers waiting dump truck, ready-mix truck or agitator. The Hagan wet belt is a quick and easy way to charge whatever height vehicle is needed with efficiency and speed. SPECIFICATIONS 48” x 50’ deep angle truss design belt conveyor (600 fpm) 50 hp belt drive motor, reducer with backstop and v-belt guard 48” deep roughing CEMA C idlers with sealed for life bearings 48” x 3-ply high impact polyester cord belting discharge hood to transit mixers, dump trucks or agitators FEATURES mixer charging hopper with skirt board assembly single axle assembly with dual 11” x 20” tires, air brakes and running lights includes electrical wiring with controls and motor starter in junction box mounted on side of conveyor Pre-wired in EMT conduit to (NEC) National Electrical Code
