Bag dust collector

pulse-jet backflow

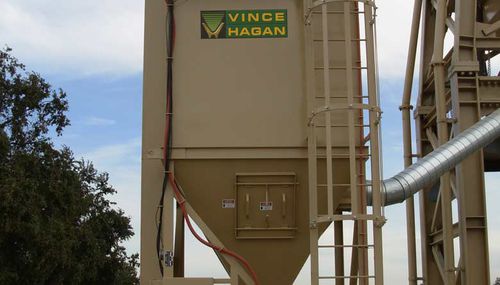

FREE STANDING CENTRAL DUST COLLECTOR CEMENT DUST COLLECTOR The Vince Hagan Free Standing “Jet Pulse” Central Dust Collector can be used on new or existing concrete batch plant operations.The jet pulse is state-of-the-art design that will meet both state and federal EPA requirements on your concrete batch plant. SPECIFICATIONS 700 TO 1423 Sq. Ft. Cloth Area UP TO 8500 CFM 99.8% @ 1 micron efficiency FEATURES Ground mount or elevated structure designs “Jet-Pulse” Cleaning Design For Continuous Operation Polyester fume bags with cage for collection of cement dust Truck shrouds to accommodate all style of trucks Automatic Dust Reclaim System Available Multiple pick-up points from truck shroud, batcher and silos Includes safety ladder and handrails for ease of service Installation available AQMD (Air Quality Manufacturers Division) rated and plated
