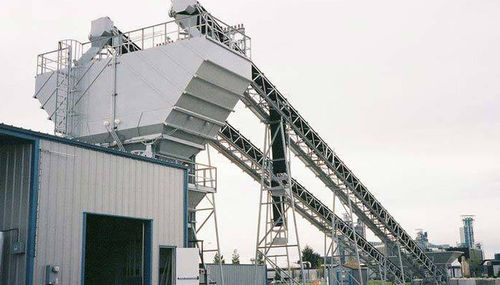

STATIONARY CONVEYOR Choose the Vince Hagan manufactured conveyors for all of your plant needs, including fixed incline stationary conveyors, radial stacking conveyors, mobile radial stacking conveyors, and mobile fixed position conveyors. All Vince Hagan conveyors are built on a heavy-duty 36″ deep truss frame constructed of 3″ X 3″ chord angle with support bracing designed for the type of conveyor. Stationary conveyors are available in 24″, 30″ and 36″ wide and up to 220′ long. SPECIFICATIONS 24″ conveyors are rated to at 300 tons per hour fully loaded 30″ conveyors are rated to at 480 tons per hour fully loaded 36″ conveyors are rated to at 700 tons per hour fully loaded Pre-wired in EMT conduit to (NEC) National Electrical Code FEATURES Vince Hagan conveyors are designed to run at 300 FPM Pre-wired in EMT conduit to (NEC) National Electrical Code Motor starter NEMA panel is UL certified Loader hoppers are available in 10′ X 6′,10′ X 10′, or 12′ X 12′ All production rates theoretical
