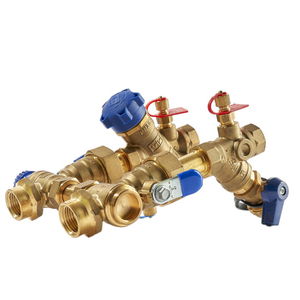

Ball valve 91BY seriesmanualdiverterthreaded
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- diverter
- Body
- threaded
- Applications
- HVAC, pipe, fan, coil
- Number of channels
- 4-way
- Other characteristics
- ISO, standard, DZR
- DN
Min.: 15 mm
(0.591 in)Max.: 25 mm
(0.984 in)- Pressure
16 bar, 25 bar
(232.1 psi, 362.6 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 130 °C
(266 °F)
Description
Valve for HVAC Terminal Units Mounting
Additional information
Material -
DZR Brass
Typology -
Ball valve
Connection -
ISO 228/1, ISO 7/1
Valve for HVAC terminal units mounting (fan coils, heat exchangers and so on)
Threaded M/M for union end (ISO 228/1) on coil side
Threaded F/F (ISO 7/1 Rp) on pipe side
Air testing according to EN12266-1
Standard center to center 80mm, customizable
Blow-out proof stems
TR CU 010 compliant
Free of CE marking (cat. according to Art. 4.3 Dir. 2014/68/EU)
Working conditions
● Not suitable for: gases group 1 & 2, liquids group 1 (Dir. 2014/68/UE)
