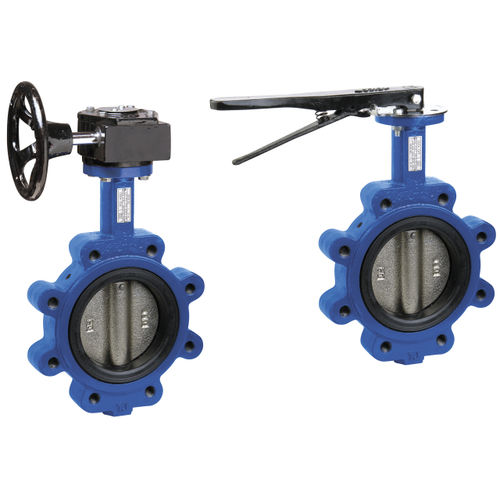

Butterfly valve 4320/4325 seriesleverwith handwheelfor control
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever, with handwheel
- Function
- for control
- Media
- for water
- Body
- lug type, iron
- DN
Min.: 1.25 in
Max.: 24 in
- Temperature
Min.: -10 °C
(14 °F)Max.: 110 °C
(230 °F)
Description
Ductile iron Lug butterfly valveDiameters from DN032 - 1¼" to DN600 - 24"For EN1092 PN16 flanges (also PN10 for DN≤150)Lengths according to EN558-1 series 20 (ex DIN3202 K1)Design according to EN593Testing according to EN12266-1Epoxy coating (min. 150 μm)Available with ductile iron or stainless steel discEPDM seatAvailable in the following versions:
● with lever (lockable in both open and close position)
● with manual gear
● with CUTTER (DN≤200) or CUTTER-XL (above) electric act.
● with HOVERCRAFT pneumatic actuatorTR CU 010 compliantPN16 (PN10 for DN≥350)Free of CE marking (cat. according to Art. 4.3 Dir. 2014/68/EU)Working conditions
● Suitable for: water, -10°C to +110°C specific version for gas available (Fig. 4321) below 0°C only for water with added antifreeze fluids
● Not suitable for: gases group 1 & 2, liquids group 1 (Dir. 2014/68/UE)
