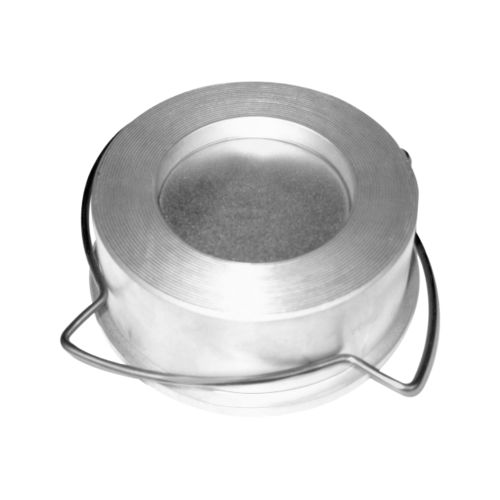

Cartridge check valve 775 serieswaferstainless steelspring
Add to favorites
Compare this product
Characteristics
- Type
- cartridge
- Body
- wafer
- Material
- stainless steel
- Other characteristics
- spring
- DN
Min.: 0.5 in
Max.: 4 in
- Pressure
40 bar
(580.2 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 220 °C
(428 °F)
Description
Spring loaded stainless steel check valve
Diameters from DN015 - ½" to DN100 - 4"
Wafer type, suitable for EN1092 PN6, PN10, PN16 or PN40 flanges
Lengths according to EN558-1 series 49 (ex DIN3202 K4)
To be installed horizontally or vertically
Minimum opening pressure 0,035 bar
TR CU 010 compliant
PN40 (Max 40Bar up to 100°C, Max 10Bar above)
Free of CE marking (cat. according to Art. 4.3 Dir. 2014/68/EU)
Working conditions
● Suitable for: water, -10°C to +220°C
● Not suitable for: gases group 1 & 2, liquids group 1 (Dir. 2014/68/UE)
