Globe valve 9522/9525 series

manualelectricfor control

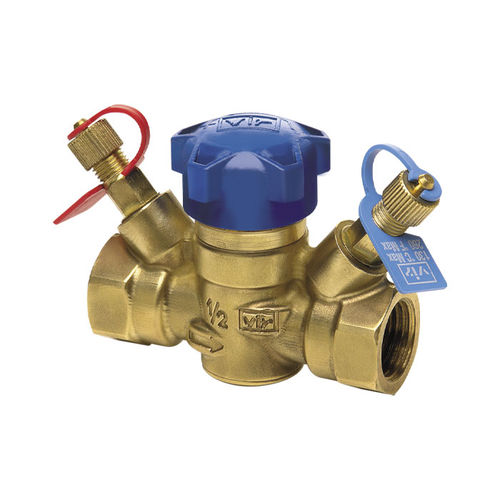

DZR brass ON/OFF terminal balancing valve with standard test points (Fig. 9525) and optional electric actuator (Vaurien) Additional information Material - DZR Brass Typology - Static balancing Connection - ISO 228/1 DZR brass ON/OFF terminal valve Threaded F/F (ISO 228/1 for DN15 and DN20, ISO 7/1 Rp above) Olive and nut kit (O/N) for European copper tubing (EN1057) on request: ● DN015, kit for 15 mm pipe ● DN020, kit for 22 mm pipe Tolerance on nominal Kv for fully open valve ±10% (test according to BS7350) Available in the following versions: ● Fig. 9522, without test points (it doesn’t allow flow measurement) ● Fig. 9525, with test points With threaded M30x1,5 connection for linear actuator Free of CE marking (cat. according to Art. 4.3 Dir. 2014/68/EU) Working conditions (ethylene glycol or propylene glycol mixtures up to 50% may be used) ● Not suitable for: gases group 1 & 2, liquids group 1 (Dir. 2014/68/EU) Optional “Vaurien” electric actuator ON/OFF linear actuator M30x1,5 threaded nut with fast connection Stroke time: about 5 minutes With 1m electric wire Enclosure protection IP54 CE compliant Power supply 50Hz or 60Hz Versions for 230VAC or 24V AC/DC available Normally closed (NC) Normally open (NO) version available on request
