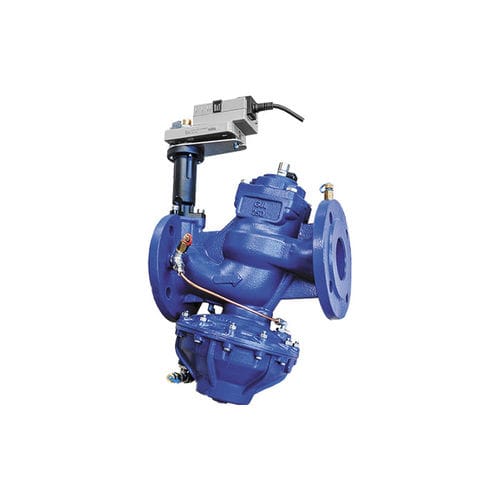

Globe valve 9755 seriesmanualfor controlcast iron
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- manual
- Function
- for control
- Body
- cast iron, cast
- Applications
- actuator
- Other characteristics
- modulating
- DN
Max.: 150 mm
(5.906 in)Min.: 65 mm
(2.559 in)- Pressure
20 bar
(290.1 psi)- Temperature
Max.: 110 °C
(230 °F)Min.: -10 °C
(14 °F)
Description
Cast iron pressure indipendent control valve (PICV)
Additional information
Material -
Cast Iron
Typology -
Dynamic balancing
Connection -
Flanged
Cast iron pressure independent control valve (PICV)
Flanged PN16 according to EN1092-2 (ex DIN2533)
With differential pressure regulator for ∆P up to 400kPa
Tolerance on nominal regulated flow ±15%
With 0-10VDC modulating actuator, power supply 50Hz/60Hz 24V AC/DC
TR CU 010 compliant
Free of CE marking (cat. according to Art. 4.3 Dir. 2014/68/EU)
Working conditions
(ethylene glycol or propylene glycol mixtures up to 50% may be used)
● Not suitable for: gases group 1 & 2, liquids group 1 (Dir. 2014/68/EU)
