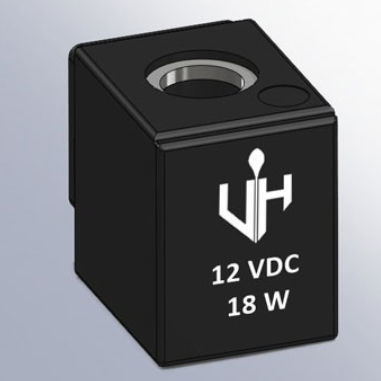

Magnetic coil CCS0 voltageACDC
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic
- Electrical characteristics
- voltage, AC, DC, insulation
- Applications
- for industrial applications
- Other characteristics
- encapsulated
Description
Magnetic circuit encapsulated with thermoplastic compound.
Black standard colour.
Metal parts protected against oxidation according to RoHS
directive.
Bore size: Ø13.0 mm
Technical Features
Power: 18W
Various voltage options available (both AC and DC)
Coil insulation class: F (155°C)
Wire insulation class: H (180°C)
ED 100%
Supply power tolerance: +10%, -10% (DC) +10%, -5% (AC)
Several connector options available.
Ambient Temperature range: -30°C, +50°C
Weight: 0.17kg
Catalogs
CCS0
1 Pages
