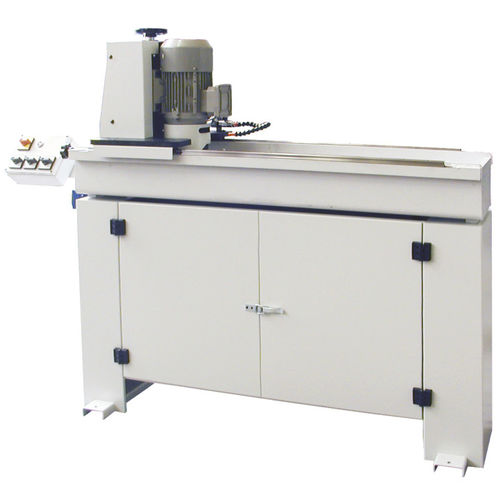

Surface grinding machine KG 650 and KG 850

cutting toolautomaticprecision

Grinding machines for plane knives. Automatic feeding of grinding wheel. Base and cooling system included. Frame very strong to absorb the vibration during grinding operations. Knives Lenght: KG 650 -> 650 mm and KG 850 -> 850 mm Knives Width [min – max]: 10 – 35 mm Grinding Angle [min – max]: 0° – 45° Wheel Motor Power: n° 1 x 0.75 kW Feeding Motor Power: n° 1 x 0.09 kW Pump Motor Power: n° 1 x 0.06 kW Wheel Grinder Dimensions [Ø (Ext x Int ) x Thickness]: 125 x 16 x 50 mm Machine Dimensions [D x W x H] : KG 650 = 48 x 142 x 125 cm; KG 850 = 48 x 162 x 125 cm Packing Dimensions [D x W x H]: 100 x 170 x 145 cm Gros / Net Weight Machine: KG 650 = 208 / 243 Kg, KG 850 = 238/ 278 kg
