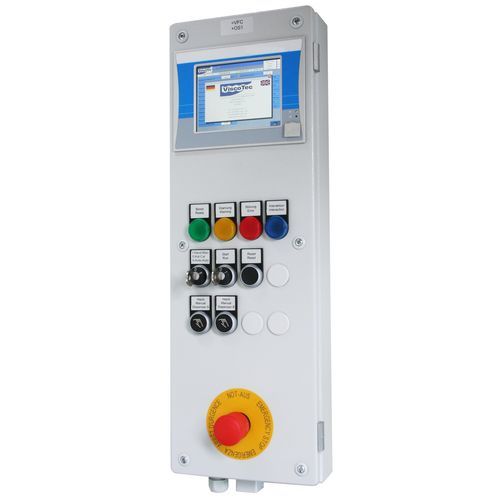

Dosing pump controller ViscoDos-4000-2K Touch

Dosing pump controller - ViscoDos-4000-2K Touch - ViscoTec Pumpen- u. Dosiertechnik GmbH
Dosing pump controller - ViscoDos-4000-2K Touch - ViscoTec Pumpen- u. Dosiertechnik GmbH
Dosing pump controller - ViscoDos-4000-2K Touch - ViscoTec Pumpen- u. Dosiertechnik GmbH - image - 2
Dosing pump controller - ViscoDos-4000-2K Touch - ViscoTec Pumpen- u. Dosiertechnik GmbH - image - 3
Dosing pump controller - ViscoDos-4000-2K Touch - ViscoTec Pumpen- u. Dosiertechnik GmbH - image - 4
Add to favorites
Compare this product


Characteristics

Pump type
dosing

Description

The ViscoDos-4000-2K Touch dosing control is used to control two ViscoTec dispensers with DC motors in a fixed mixing ratio. The control is based on a microprocessor control with a 5,7“ VGA TFT - colour display. All the process parameters can be set on the display: - mixing ratio (in volume) - dosing volume (in ml) - output (in ml/s) - rinse shot (in ml) All process-relevant parameters are monitored: - pot life - rinse shot - time to next rinse shot - max. number of rinse shots - tank level of rinse shots - tank level of material supply - actual pressure in each component - all faults are displayed in plain text on the display Monitoring of the feeding systems is also integrated. continuous process control - level monitoring component A and B: min. and premin. (potential free contacts) - primary pressure monitoring analog or digital with control of product supply - pressure monitoring component A and B (overpressure, pressure build-up with analog sensor 0.1-10 V) - signal / alarm indicator: signal lamp in the door, potential-free contacts, external acceptance, optional signal traffic light - counter for the number of doses and hours of operation with adjustable maintenance message Application: - control of two dosing pumps in a defined mixing ratio in volume - integration into production cells - connection to robot or axis systems - integration in superior control possible (hardware or Profibus)
