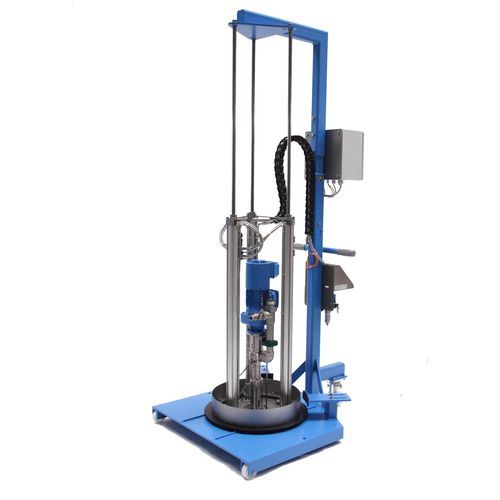

Drum emptying system ViscoMT-L

containerfor highly viscous productstub

The ViscoMT-L 3/18 barrel-emptying unit offers a modern solution for the emptying of containers. The use of our VMP series for the emptying of medium offers the following advantages: - container sizes from approx. 50 l to 300 l - viscosities from approx. 80,000 to 2,000,000 mPas - very low shear stress of medium - very low pressure load on medium (max. 12 bar) - emptying of media with filler content - no backflow in the emptying pump - electrical control of pump with pressure regulation - valveless pump system - no material pressure reducers required thanks to electronic pressure setting - excellent emptying results (less than 1% residue) Application: - material emptying direct from original container, e.g. silicones, adhesives, resins, grease, colour paste - material feed to dispensers - direct dosing as pulsation-free flow, e.g. for screen-printer maschines Necessary and optional components: - dispenser with drive for dosing - dosing control - hose lines - baffle plates reduces cleaning losses at barrel change - several barrel diameters possible Further designs: Emptying pumps of other capacities (max. 10 l / min) and follower plates to fit containers. Stator material selected to comply with the material.
