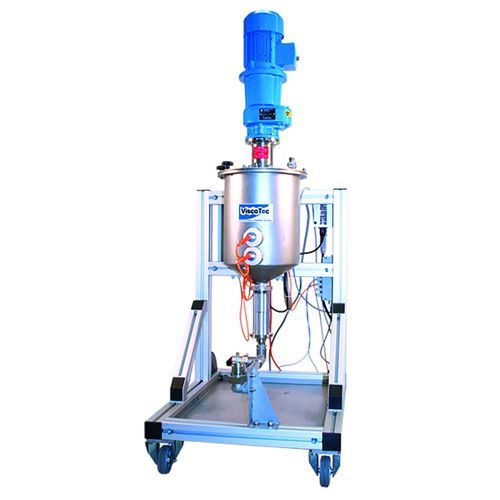

Viscous fluid feeding system ViscoTreat-R

The ViscoTreat-R treatment and feed system ensures a smooth and reliable product supply. The material is stirred and circulated, and thereby optionally prepared for the production process. The utilization of the VRP dispenser range for the material feeding offers the following advantages: - viscosities up to 50,000 mPas - very low shear stress of material - very low pressure on material (max. 18 bar) - emptying of filled material - no reflux in the emptying pump - electrical control of pump with pressure regulation - no air supply required - valveless pump system - no material pressure reducers required because of electronic pressure setting - stator material is selected to comply with material Application: - feeding and treating of high viscosity material such as: silicones, adhesives, resins, grease, colour pastes, metal filled pastes (Cu and Ni solder pastes, Al and Ag pastes) - direct dosing as pulsation-free flow, e.g. also in screen-printing machines - container filling, e.g. cartridges - material supply to dispensers
