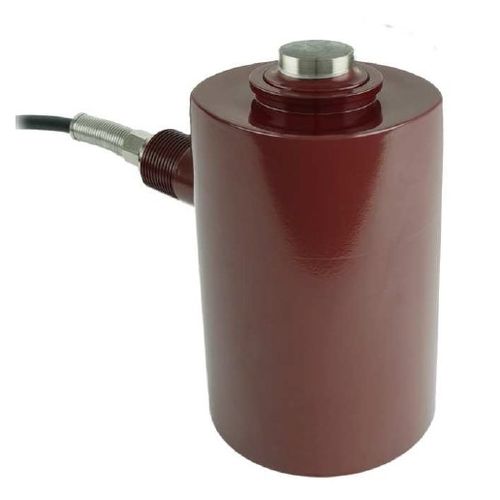

Compression load cell C2P1

canisterstrain gaugeweighing

C2P1 load cells are designed for various types of weighing and force measurement. Construction of C2P1 load cells utilizes all of the advantages of SR-4®, strain gages. C2P1 load cells meet or exceed NIST Handbook 44 requirements and are Factory Mutual approved. Also, the National Type Evaluation Program (NTEP) has issued Certificate of Conformance number 87-060 for C2P1 20K to 200K pound capacities. Double diaphragm fabrication and gage linearizing combine to offer precision performance and long term reliability. Low deflection and superior sealing guarantee trouble-free operation. Relatively low mass and small deflection under load, produce excellent frequency response. Overall, C2P1 cells perform superbly in many services where other transducers cannot. Features - Capacity range: 20K, 50K, 100K, 200K, 300K, and 500K lb (9K, 13.6K, 22.7K, 45.4K, 90.7K, 136K, and 227K kg) - Compact and rugged - Operational: –30° to +175°F - Low deflection - Environmentally sealed - NTEP Certificate of Conformance for Class IIIL scale applications (20K to 200K) FM and CSA approved - OPTIONAL FEATURES - Capacities greater than 500K lb (227K kg) - consult factory
