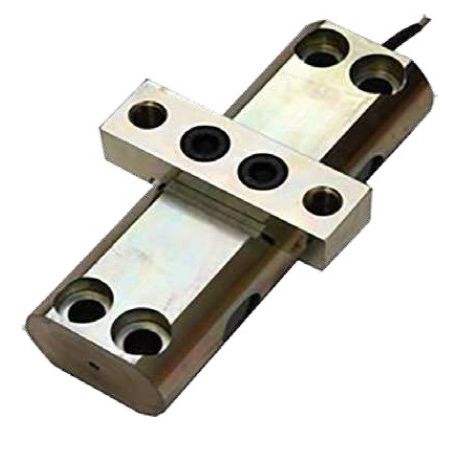

ATEX weigh module KIMD-M

for hazardous areasfor tankfor silos

The model KIMD-M load cell is a double shear beam load cell, ideally suited for applications in harsh environments. Due to the special heavy duty design with moveable load point, the KIMD-M load cell is insensitive against side loading and other interfering effects such as thermal expansion. With high temp cable option, load cell is suitable for use in steel mills and foundries. Due to the high repeatability and high long-term stability, the load cell supplies very good results, even after perennial use. IP67 gives an excellent protection against dust and moisture. All KIMD load cells can be ATEX/IECEx certified for use in explosive atmospheres Features - High accuracy - Easy installation - For harsh environmental conditions - ATEX/IECEx approved for hazardous areas - Movable load point - Allow movement caused by thermal expension - No extra mounting - High capacity 500 - 1000kN and 1500 - 2000kN
