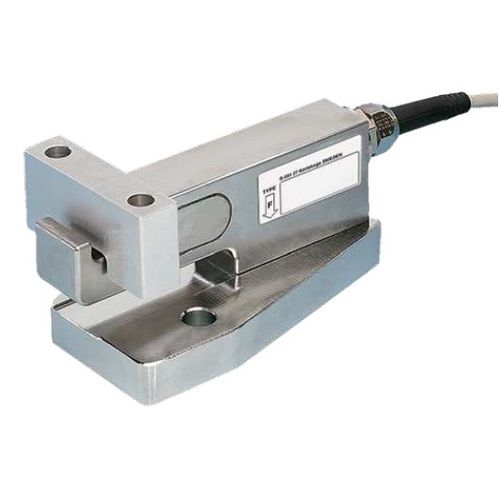

ATEX weigh module KIS-9

for hazardous areasstainless steel

The KIS-9 load cell has several features that clearly distinguish it from other load cells. It is easy to install and extremely accurate, even when subjected to vibration forces and severe environmental conditions. Due to the rugged cantilever design and position of the floating yoke it is not affected by side forces up to 100%. This makes it non sensitive to thermal expansions, vibrations and disturbing side force. All KIS load cells can be ATEX/IECEx certified for use in explosive atmospheres. Features - Capacity range: 5, 10, 20, 50, and 100 kN (1.12K, 2.25K, 4.5K, 11.2K, and 22.5K lb) - Simple installation - Moveable load point - Withstands very high lateral forces - Accurate and rugged - ATEX/IEXEx certified for hazardous locations
