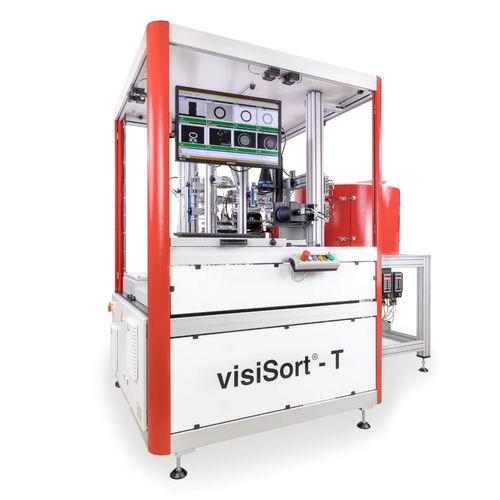

Sorting machine for the automotive industry visiSort-T

for the pharmaceutical industryfor the mining industryfor the food industry

visiSort-T with glass turntable The functional principle of visiSort-T is based on a turntable that feeds individual parts to test stations. This concept is characterized by a high test speed and also allows parts to be tested on the underside through the glass. visiSort-T is suitable for all parts that have a stable location. Performance features • - Inspection rate: 80-800 parts/min • - Modular, expandable machine concept • - Industry-standard execution, modern design • - Linking of peripheral equipment such as bins and packaging is possible at any time • - Measurement of outer contour, e.g. diameter, chamfers, radii, threads, angles, punctures, etc. • - Surface tests, e.g. scratches and machining marks • - Presence of internal threads • - Repeatability up to ±1 µm (depending on the image aperture) • - Graphical user interface for creating and storing new testing processes • - Quick and simple repositioning in parts exchange • - Simultaneous measurement of parts with up to 8 cameras Part spectrum The aspect ratio (length in the conveying direction/height) of parts in the visiSort® model with turntable must be at least 1.5. Width in the conveying direction: 5 - 56 mm Height: 1 - 40 mm Part weight: 1-50 g, expandable to 120 g
