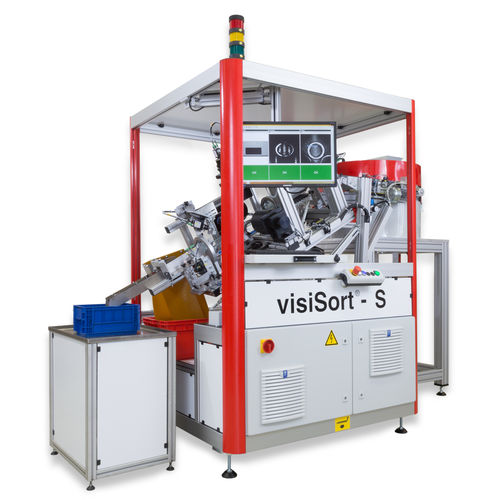

Sorting machine for the automotive industry visiSort-S

for the pharmaceutical industryfor the mining industryfor the food industry

The visiSort-S is suitable for the testing and sorting of cylindrical and disk-shaped parts and is thereby the ideal entry-level model. Options • - Part bins in different models • - Sorting devices customized to your part spectrum • - Exit belt • - Packaging unit • - Drop chute • - SPC software to create inspection records • - Printer for protocol prints • - Network connection • - 60° bar for hexagon head cap screw • - Metal bars with glass inserts • - Angle adjustment of bar • - Changing carriage to quickly change cameras Performance features • - Inspection rate: 100 - 300 parts per minute • - Modular, expandable machine concept • - Industry-standard execution, modern design • - Linking of peripheral equipment such as bins and packaging is possible at any time • - Measurement of the outer contour, e.g. diameter, chamfers, radii, threads, angles, punctures, absence of chips, etc. • - Presence of internal threads • - Accuracy from ±3 µm • - Graphical user interface for creating and storing new testing processes • - Quick and simple repositioning in parts exchange • - Simultaneous measurement of parts with up to 5 cameras (from the side, from the top, thread control under 45°, view from rear) • - High availability of the machine in 3-shift operation • - Data provision to create inspection records with CAQ link • - Adjustable gradient of bar • - Adjustable cameras and lenses in the protective housing
