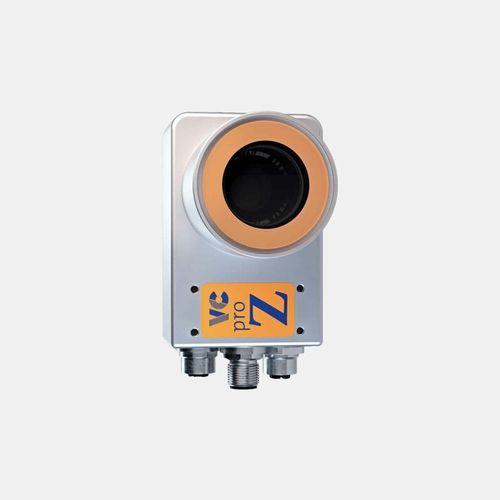

Smart camera VC pro Z series

industrialfor embedded devicesdigital

Designed for industrial applications: Our VC Nano Z Smart Cameras with powerful ARM processors and VC Linux OS. Ready to use and in a robust protective housing. The VC cameras with housing are available in three variants, with a robust standard housing, additional LED illumination and with a housing protected according to IP67 for use in harsh environments. For additional performance maximization, the integrated FPGA can be programmed. This allows up to ten times higher processing speeds to be achieved than without FPGA use. The VC pro Z series offers optimal protection for all applications in harsh environments: Housing and M12 connectors comply with protection class IP67. Individual components can be freely selected for these models: On request, the embedded system can be supplied including integrated optics and/or high-power LED lighting. Shutter: High-Speed: 34 µs + in Stufen von 34 µs. Low-Speed: bis zu 2 s einstellbare Integrationszeit Acquisition: Programmkontrollierter oder externer High-Speed Trigger, Vollbild & partieller Scan (ROI), Aufnahme jitterfrei Processor: Dual-Core ARM Cortex-A9 mit 2 x 866 MHz und integriertem FPGA RAM: 512 MB DDR-SDRAM Flash-EPROM: 16 GB flash memory (nicht flüchtiger Speicher) Dig. I/Os: 4 Eingänge, 4 Ausgänge Trigger I/Os: 1 Trigger Eingang und 1 Blitztrigger Ausgang Interfaces: 1 Gbit, Encoder, RS232, 2x Beleuchtung, 10 I/Os Voltage: 12 - 24 V +/-20 % DC Power consumption: 3 W Dimensions: ca. 88 mm x 58 mm x 36 mm, ca. 300 g
