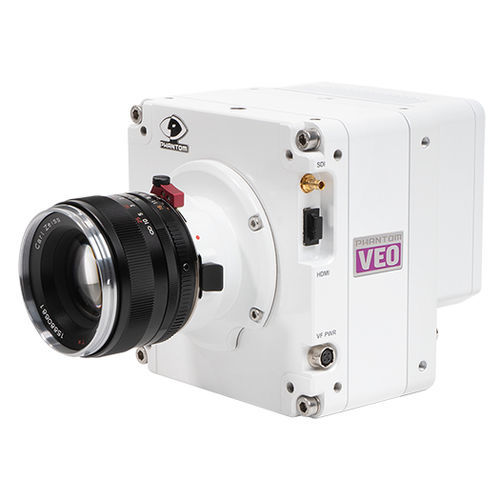

Camera for scientific applications VEO 1310

for research and developmentfor the automotive industryfor military applications

The Phantom VEO 1310 is the most light sensitive VEO available. It is available in both L (light) and S (full) body styles to meet the needs of many applications. The VEO 1310 increases the capabilities of the Phantom VEO series of cameras. With 13 Gpx/s throughput the 1310 captures images faster than any other VEO model while also increasing image quality with low image noise and high light sensitivity as found in premium camera systems. Flexibility is demonstrated starting with the custom 1.2 Megapixel sensor. A binned mode is included for increased frame rates and sensitivity at low resolutions. Interchangeable lens mounts, Nikon, PL, C and Canon EF with electronic control, are available for use with industry standard and advanced optics. This combined with the specific features found in S-model and L-model VEOs, and workflow options such as 10Gb Ethernet allow users to customize the system as needed for their particular event. All Phantom VEO cameras utilize the same high-quality housing design. The milled aluminum body is compact and constructed to be lightweight at 5 lbs/2.3 kg. Components are safe from dust and sand as the electronics are safely sealed and protected from airflow. These added protections and the rugged design ensure device safety during outdoor and range use. Key Features •Binning Mode - 25% frame rate boost at 640 x 480 and below •SDI and HDMI video outputs •S-Model Includes: •CFast 2.0 media •12V battery input •On-camera controls •Programmable I/O - assign and define camera signals •10Gb Ethernet Connectivity Option What's in the box? •Power supply with XLR extender •Ethernet Cable •Mini-SDI video cable •Printed manual
