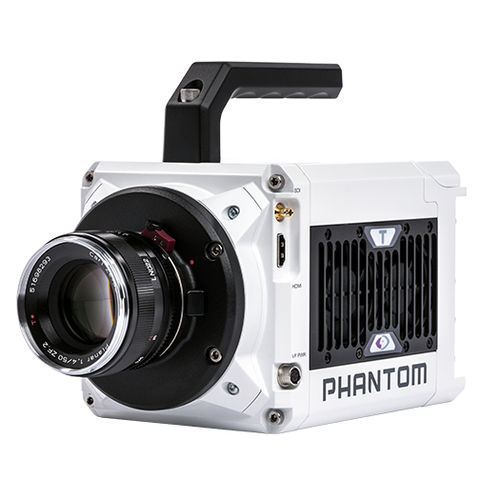

Camera for scientific applications T3610

for the automotive industryindustrialfor military applications

T3610 packs ultrahigh-speed frame rates and performance into a compact platform, 50% lighter than the closest equivalents. Back side illuminated (BSI) sensor technology maximizes sensitivity for sub-microsecond exposure times as often required in high-velocity testing. At its full 1 Mpx resolution of 1280 x 800 the Phantom T3610 captures over 38,000 fps. This 38 Gpx/second throughput is maintained through its full range for a top frame rate of 875,000 fps at both 1280 x 32 (standard mode) and 640 x 64 (binned mode). Binned mode increases the vertical resolution of the camera's top frame rates by combining the sensor pixels 2x2. Binned mode is included on both mono and color T3610 cameras, however the output will switch to mono when used on a color camera. The frame rates provided by the T3610 are sought after for combustion, impact testing, spray dynamics, and shock wave analysis. Any extremely fast application that can benefit from fast exposures to reduce motion blur and image sensors that offer high light sensitivity will also be an excellent match. The T3610 custom BSI sensor delivers on all fronts, providing native ISO of 40,000D mono and the ability to shoot in environments with limited supplemental light. The T3610 includes premium features to enable a variety of applications including: •EDR (Extreme Dynamic Range) provides flash mitigation for ballistic studies by dynamically adjusting exposure in saturated areas of the image. •Programmable I/O to interface with DAQ systems and a variety of measurement sensors, which can be recorded and viewed as metadata in Cine files.
