Research and development camera VEO4K-PL

for scientific applicationsfor the automotive industryfor production

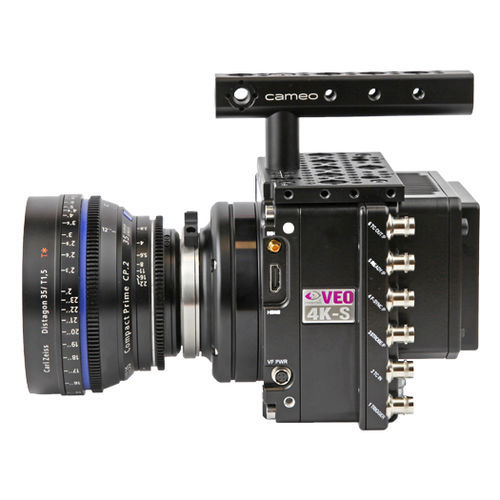

The Phantom VEO4K-PL produces highly detailed 4K imaging at 1,000 fps in a rugged and compact housing. Features include access to CFast 2.0 recording media and the connections necessary to accommodate media production needs. VEO4K-PL and PL-RLS cameras bring the high imaging standards of the Phantom Flex4K to a portable and rugged body style. The compact body increases the flexibility of use including such applications as robotic arms and drone flight. The 35mm 9.4 Mpx sensor produces sharp highly-detailed images at high frame rates and upholds the low noise requirements of the industry, particularly in rolling shutter mode. While the VEO4K-PL does come with a standard PL mount there is user flexibility through the optional and interchangeable lens mounts. Nikon and Canon EF (with electronic control) mounts are also available to increase workflow needs. The VEO4K-PL housing comes standard in the VEO S-style body with full features for maximum portability. The body is made from milled aluminum, has sealed electronics (to protect from air and dust), is lightweight (6 lbs/2.8 kg), and is ruggedized to increase the durability in harsh environments. Key Features: •SDI and HDMI video outputs •Includes S-Model features: -CFast 2.0 media -12V battery input -On-camera controls •PL Mount Included •Optical Low Pass Filter (OLPF) included •Programmable I/O •10Gb Ethernet Option •Cine Raw file format
