Smooth conveyor belt DOLPHINE
toothedfoodfood grade

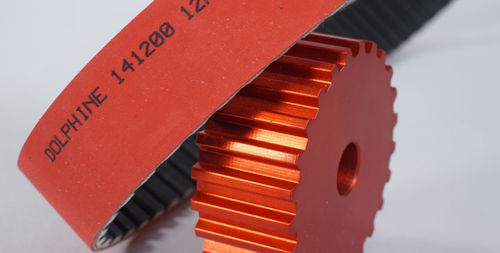

Smooth conveyor belt - DOLPHINE - Vision Tech - toothed / food / food grade

Smooth conveyor belt - DOLPHINE - Vision Tech - toothed / food / food grade - image - 2

Smooth conveyor belt - DOLPHINE - Vision Tech - toothed / food / food grade - image - 3

Smooth conveyor belt - DOLPHINE - Vision Tech - toothed / food / food grade - image - 4

Smooth conveyor belt - DOLPHINE - Vision Tech - toothed / food / food grade - image - 5

Smooth conveyor belt - DOLPHINE - Vision Tech - toothed / food / food grade - image - 6

Smooth conveyor belt - DOLPHINE - Vision Tech - toothed / food / food grade - image - 7

Smooth conveyor belt - DOLPHINE - Vision Tech - toothed / food / food grade - image - 8

Add to favorites

Compare this product

Characteristics

Pattern

smooth, toothed

Applications

food

Other characteristics

food grade

Width

Max.: 150 mm
(5.91 in)

Min.: 10 mm
(0.39 in)

Description

NON-FOOD GRADE SYNCHRONOUS CONVEYOR BELTS DOLPHINE toothed conveyor belts are a new generation hybrid product that meshes with commercial toothed pulleys. Their structural characteristics require the use of only one toothed pulley, namely the driving pulley. All other idler pulleys which will complete the geometry of the conveyor must be smooth. They have been conceived for the synchronous transport of products and not for power transmission. They can be produced in widths between 10 and 100 mm (150 mm for AT10 and H tooth profile). For larger widths, the use of conveyor belts with "Sharkdrive" synchronous guides.
