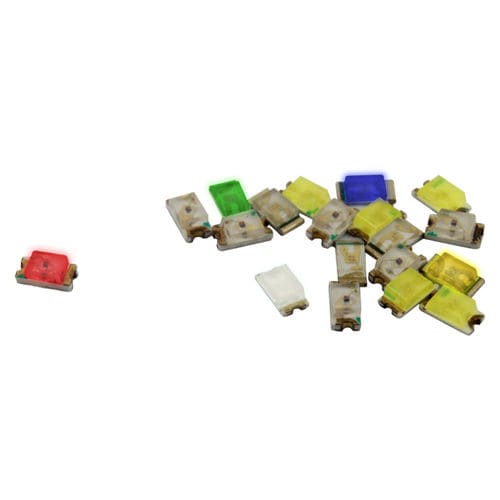

Colored LED LSM0603 series

compactSMDlow-power

LSM0603 SERIES Low Profile SMD LED with a wide viewing angle of 120° Quick Tips Low profile and smallest surface mount LEDs SMD 0603 package (1608 metric) : 1.6 mm x 0.8 mm x 0.55mm footprint Cost-efficient solution for low-power and compact electronic equipment designs Available in a range of colors: red, white, green, blue and yellow making it ideal for status indication AIGaInP and GaInP technology, low profile and small footprint opens up the opportunity for new electronic device designs. Ideal for indication application due to its rectangle flat top lens , wide viewing angle and optimized light coupling by inter reflector. Compatible with automatic placement equipment and available in automation-friendly tape and reel Ideal for special configurations for automated PC board assembly and space-sensitive applications Compliant with RoHS and REACH requirements Product Specification LSM0603 Series 0603 SMD LED package size 1.6 mm x 0.8 mm x 0.55mm Low current, low profile, small footprint SMD LED package Exceptional illumination Wide viewing angle (110°-120°) Rectangle flat top LED Single color: red, white, green, blue and yellow AIGaInP and GaInP technology Optimized light coupling by inter reflector Package: 4,000pcs / reel Compatible with automatic placement equipment 8mm (0.314”) tape on 178mm (7”) diameter reels Pb-free MSL3 moisture sensitive package Compliant with RoHS and REACH requirements
