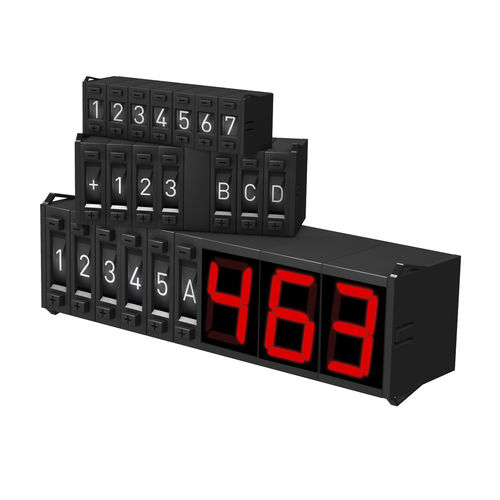

LED display KD series

3-digit

Modular small displays The small displays of the KD product series are ideally suited for machine and apparatus construction and are distinguished by their first-class workmanship and equipment. Our product range comprises four series with different sizes. The displays have a modular design and are compatible with each other in terms of design and dimensions. They are easy to assemble and form a stable block with the matching side plates, eliminating the need for additional accessories. Thanks to the convenient "snap-in mounting", the devices can be easily inserted from the front into the installation opening.en.Module widths: from 8 to 20 mm Digit heights: from 9 to 20 mm Suitable for SPS control Operating voltage: 24 VDC Signal voltage: "0" level: max. 3 VDC or open, "1" level: 10 to 30 VDC Operating voltage: 5 VDC Signal voltage: "0" level: max. 1.5 VDC, "1" level: 3.8 to 5.5 VDC Data format: BCD or hexadecimal, positive logic
