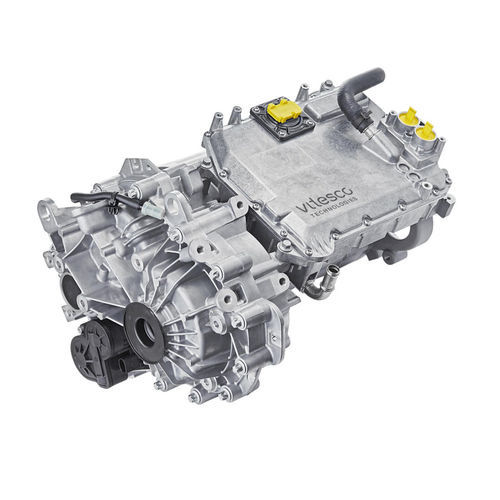

Electric vehicle drive system EMR3

electric

The high voltage axle drive is a highly integrated electric drive system. It consists of a permanent-magnet synchronus e-motor, an inverter and a reducer. The axle drive is compact in size, has a low weight and is a all-in-one solution, thus reducing integration efforts for the vehicle manufacturer. The axle drive has been developed for high volume market electric vehicles (EVs). FACTS & BENEFITS Integration of motor, inverter and reducer High power density for a compact packaging No connectors, no cables between motor and inverter Reduced efforts for integration, sourcing and validation TECHNICAL INFORMATION E-motor: permanent-magnet synchronous machine Max. torque: 2.900 Nm peak Max. Power: 150 kW Continuous power: 50 kW Weight: 76 kg Dimension (LxHxW): 400 x 350 x 550 mm Electric parking lock included
