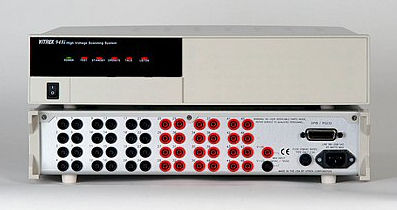

Multi-point hipot tester 948i series

948i Hipot High Voltage Switching System The Solution to Multi-point Automated Hipot Dielectric Testing Unlimited Scanning Possibilities with 7KV, 10KV, 15KV, 40A, & 70A Switching Modules When a single 948i Hipot High Voltage Switching System is combined with a Vitrek automated Hipot tester, up to 48 test points can be scanned for high voltage isolation - multiple units work together to increase your test point count. Combine two 948i's for 96 points of switching capability or ten units for 480 point capacity. Expansion possibilities are virtually unlimited. And with voltage switching capability up to 15,000 volts or current switching as high as 70 amps - the 948i can handle just about any test requirement that comes along. Modular Configuration Assures that Your Requirements are Satisfied The 948i is easily configured to meet your specific test needs. For starters, select the voltage rating and number of HV switching channels desired. In addition to hipot and IR - do you also need to do continuity or low resistance? How about LCR measurement or 4-wire resistance? The MX modules can be added or customized to allow additional measurement equipment to access the matrix. In a typical application each test point needs to be bi-polar (high for some tests and low for others), multiply the number of test points in the DUT by two and that is how many relay channels you will need.
