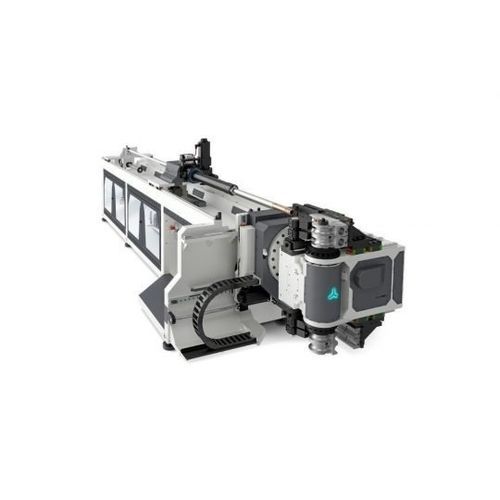

Electric bender EB-RH

tubehorizontalvertical

VLB's fully electric EB-RH series bending machines, with rotating heads, contain the most advanced Electric Motion technology on the market with 11 fully electric drive shafts. The bending head moves 360º on a radial axis and on horizontal and vertical axes. This system offers complete freedom of movement and allows the production of very complex parts in an automatic bending cycle. This range of machines is capable of bending pipes and profiles from 6 to 53 mm with even radii up to 1D with minimal marking when equipped with the booster system. Main features of the Fully Electric CNC Tube Benders Rotative Head | EB-RH series: 100% electric drive of all 11 axles. Bending head with 360 ° radial axis and horizontal and vertical linear axis. Bending clockwise and counterclockwise in an automatic cycle. Bending of multiple fixed and variable radii in the same cycle. Quick tool change, without having to readjust. High working speed and low power consumption. Axis movements controlled by servo motors with absolute encoder feedback. Simplified synchronization and optimization of bending cycles. Compact and ergonomic design for optimal operating comfort and maintenance. Sensors that compensate for material bending back and provide greater precision and less waste during the bending cycle. Powerful and intuitive VLB 3D software with anti-collision simulation. Easily program or import files from the cloud or from the network. The cycle speed and low energy consumption make these machines ideal for production with a high volume and high consistency.
