Oil filter FOC series

for winebasketpressure

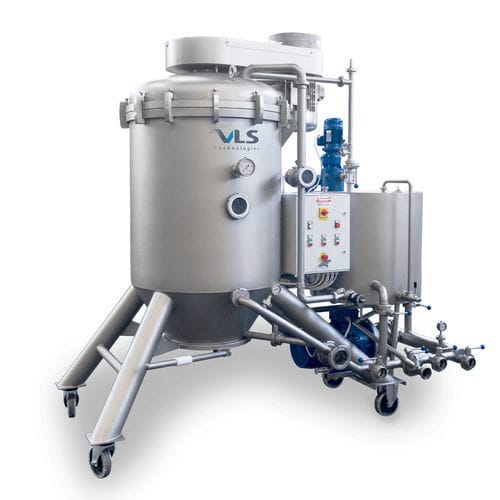

It's the centrifugal discharge version of our horizontal pressure leaf filter, available both for wine filtration and in its sanitary execution version FOC-BVA specifically designed for breweries. Standard version in stainless steel AISI 304 with frame on wheels featuring: Filter chamber with sightglass DIN11851, pressure gauge, pressure switch, dished lid with C clamps, big diameter valve at the bottom for cake discharge, motor for screens rotation for centrifugal cake discharge. Dosing tank for filter aids preparation complete with gate agitator and membrane dosing pump with adjustable flow. Product inlet pipes complete with connections and accessories with two butterfly valves for product inlet, valves for different services, feed pump in stainless steel AISI304 with pre-filter, lighted sightglass. Filters sectors in stainless steel AISI304 80 micron screens in stainless steel AISI 316. Product outlet pipes complete with connections and accessories with valves for different services, pressure gauge, flowrate indicator, lighted sightglass, sample valve and one butterfly valve for product outlet. Pipes for filter washing complete with connections and accessories, with valve for washing solution inlet and pipe with nozzles for filtering screens washing. Control board in polyestere reinforced with fiber glass self extinguish, IP65 protection. Plastic tray for cake collecting at the end of filtration. Voltage standard 400/3/50 Hz Standard aviables on request.
