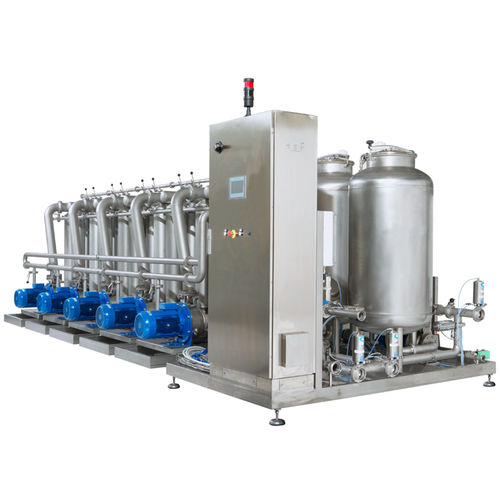

Cross flow filter TMF-I series

for winemembranepressure

Our cross flow filter for large producers: a technology that can be equipped with up to 84 polyethersulphone (PES) membranes for a filtering surface of up to 840 sqm. With TMF-I you can avoid kieselguhr and other filtration adjuvants. VLS TMF filters are particularly efficient Modularity: from 12 to 84 membranes (from 10 to 840 m2 of filtering surface) Low energy consumption (0,045 kW/m2) Asymmetrical structure of the membranes: low pressure drops, uniform filtration, low stress for the product, high flow rate, easy cleaning of the pores, they can be washed up to 90°C/194°F PRS (Pressure Release System): the machine doesn’t need filtered wine for back flushing, it is not necessary to reprocess the filtered wine, less stress for the membranes VLS TMF membranes are specific for cross-flow filtration PES membrane filter specific for wine and derivatives; suitable for cider, apple juice and vinegar filtration Capillary membranes: internal diameter up to 1,5 mm Other advantages Automatic concentrate discharge Tank management: filtering two different products one after the other and setting rinses or washes in between the two filtration runs Unit for in line dosing of bentonite Automatic self-cleaning pre-filter Element isolation valves and valves to exclude loops from the process Modular system easily expandable PC/smartphone remote control Residues still containing alcohol can be valorised in a distillery
