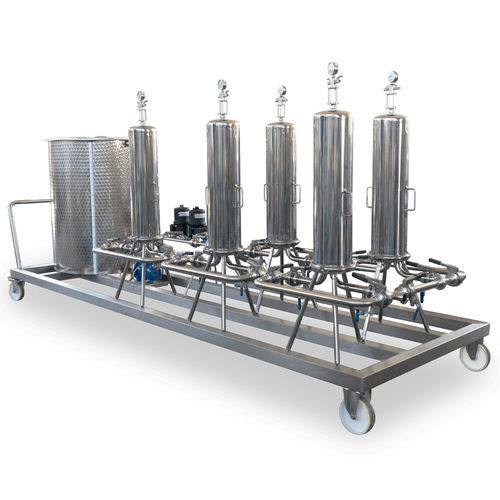

Microfiltration unit with cartridge HMC

for winehydraulicmobile

Microfiltration housing systems or cartridge filters by VLS Technologies allow to eliminate the colloidal particles and the cells of yeasts and bacteria contained in wine, and represent a fundamental step of the oenological process for high quality wine. Material: AISI 316L House dimension: 30” (750 mm.) Cartridge connection: code 7 Finishing: mechanical for food industry Upper group: AISI 304 manometer , sight glass dn 15(housing 1 and 3 cartridges ); dn 25 (housing 8 and 12 cartridges ), casting ventil valves bsp 1/4” In /out butterfly valves: dn 25 (housing 1 cartridge) dn 40 (housing 3 and 5 cartridges), dn 50 (housing 8 and 12 cartridges ) Draining /sampling casting ball valve placed over the inlet bend: 1/4” (housing 1 cartridge), 1/2” (housing 3 and 5 cartridges), 3/4” (ho using 8 and 12 cartridges ). AISI 316L LENTICULAR HOUSING 12 AND 16” COMPLETE OF UPPER GROUP Material: AISI 316L No. of filtering modules: 1-2-3-4 Finishing : mechanical for food industry Upper group: AISI 304 manometer , sight glass,casting ventil valves bsp 1/4 ”
