Pressurization system PFB series

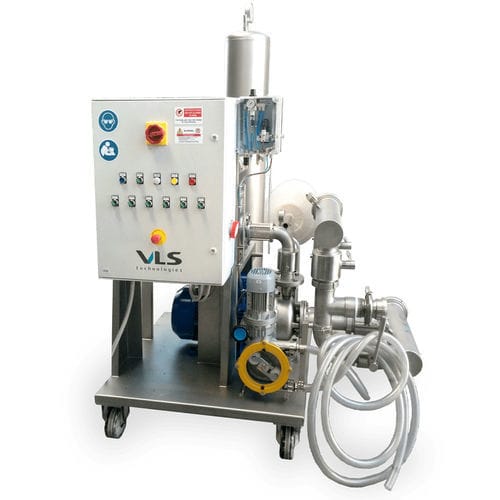

The pressurization unit is a fundamental element in the flotation process, that enables to eliminate the dispersed particles of must through an approach based on the introduction into the must to be treated of air micro-bubbles that entangle with suspended solids and bring them to the surface. Standard version in AISI304 Stainless Steel composed by: Pressurization unit on frame on wheels composed by pre-filter, pressure gauge, centrifugal pump, inlet gas device with flowmeter, must pressure adjustment systems by manual ball valve. Suction device composed of 1/4 microcast ball valve and non return valve. Electrical panel IP55 protection. Standard Voltage 400/3/50 Hz. PRESSURIZATION UNIT WITH BATCH CYCLE PFB100 – PFB300 Standard version in AISI 304 Stainless Steel composed by: Pressurization unit on frame on wheels composed by pre-filter, two centrifugal pumps in line, pressurization pot for saturation of the product with gas, gas inlet device. Prearrangement for installation of peristaltic pumps for filter aids dosing. Pneumatic-electrical panel made in plastic material, IP65 protection. Voltage standard 400/3/50 Hz.
