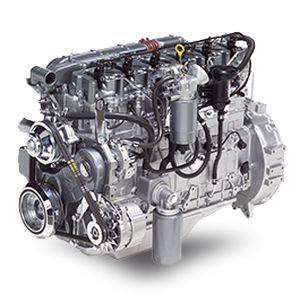

Off-road engine R 756 IE3diesel6-cylinderturbocharged
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- 6-cylinder
- Technology
- turbocharged, direct injection, common rail
- Product applications
- for the construction industry, off-road, for vehicles
- Cooling system
- water cooling
- Emissions level
- Stage III
- Other characteristics
- 4-stroke, compact, low-noise
- Power
Max.: 120 kW
(163.155 hp)Min.: 105 kW
(142.76 hp)- Torque
500 Nm
(368.7811 ft.lb)- Rotational speed
1,400 rpm
(8,796.46 rad.min-1)- Displacement
4.5 l
(1.189 gal)- Weight
345 kg
(760.59 lb)- Length
945 mm
(37.2 in)- Width
620 mm
(24.4 in)- Height
725 mm
(28.5 in)
Description
The R756IE3 is a 4-stroke diesel engine, direct injection, electronically regulated "common rail" fuel system, with turbocharger and aftercooler for optimum performance and fuel consumption.
Used in the most severe conditions, this engine combines reliability , simplicity of use and maintenance; reduced consumption and low noise levels. Characteristics appreciated by end users who find ease in the installation of this engine also thanks to its small size.
Stage III A approval allows its use in countries and applications where no particular emission regulations are required.
