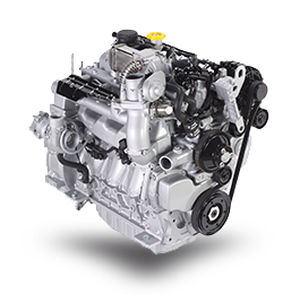

Off-road engine R 754 IE417diesel4-cylinderdirect injection
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- 4-cylinder
- Technology
- direct injection, common rail
- Product applications
- for the construction industry, off-road, for vehicles
- Cooling system
- water cooling
- Emissions level
- Stage III
- Other characteristics
- 4-stroke, compact, low-noise
- Power
Min.: 59 kW
(80.218 hp)Max.: 80 kW
(108.77 hp)- Torque
420 Nm
(309.7761 ft.lb)- Rotational speed
1,100 rpm
(6,911.5 rad.min-1)- Displacement
3 l
(0.793 gal)- Weight
260 kg
(573.2 lb)- Length
705 mm
(27.8 in)- Width
553 mm
(21.8 in)- Height
760 mm
(29.9 in)
Description
The R754IE417 is a 4-stroke diesel engine, direct injection, electronically regulated "common rail" fuel system, with turbocharger and aftercooler to optimize performance and fuel consumption. The exhaust gas treatment system (DOC + DPF with cooled EGR), allows the certification of this engine according to the Stage IIIB regulations for non-road mobile machines.
Used in the most severe conditions, this engine combines reliability, ease of use and maintenance; reduced consumption and low noise levels; characteristics appreciated by end users who find ease in the installation of this engine also thanks to its small size.
