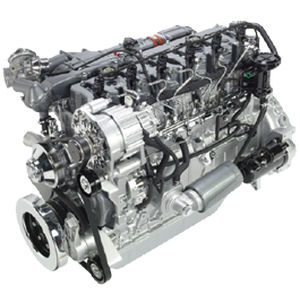

Diesel engine R 756 IE56-cylinderturbochargeddirect injection
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- 6-cylinder
- Technology
- turbocharged, direct injection, common rail
- Product applications
- for the construction industry, off-road, for vehicles
- Cooling system
- water cooling
- Emissions level
- Stage V, Euro 6
- Other characteristics
- 4-stroke, compact, low-noise
- Power
Max.: 120 kW
(163.155 hp)Min.: 105 kW
(142.76 hp)- Torque
500 Nm
(368.7811 ft.lb)- Rotational speed
1,400 rpm
(8,796.46 rad.min-1)- Displacement
4.5 l
(1.189 gal)- Weight
350 kg
(771.62 lb)- Length
945 mm
(37.2 in)- Width
620 mm
(24.4 in)- Height
725 mm
(28.5 in)
Description
The new common rail diesel engine VM offers everything expected from a powerful and modern industrial engine. The R756 IE5/EU6C is a 4-stroke diesel engine, direct injection, electronically regulated "common rail" fuel system, with turbocharger and aftercooler to optimize performance and fuel consumption.
The exhaust gas treatment system (DOC + DPF + SCR EGR), allows the certification of this engine according to the EUROVI regulations for mobile road machines and also Stage V for non-road mobile machines; a double approval that gives high engine versatility.
Used in the most severe conditions, this engine combines reliability, ease of use and maintenance; reduced consumption and low noise levels. Characteristics appreciated by end users who find ease in the installation of this engine thanks to its small size.
