Generator set engine D750 seriesdiesel6-cylinder4-cylinder
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- 6-cylinder, 4-cylinder, 3-cylinder
- Technology
- direct injection
- Product applications
- for generator sets
- Cooling system
- water cooling
- Emissions level
- Stage III, Stage II
- Other characteristics
- 4-stroke, compact, low-noise
- Power
Min.: 23 kW
(31.271 hp)Max.: 98 kW
(133.243 hp)- Rotational speed
1,500 rpm, 1,800 rpm
(9,424.78 rad.min-1, 11,309.73 rad.min-1)- Displacement
2.2 l, 3 l, 4.5 l
(0.581 gal, 0.793 gal, 1.189 gal)- Weight
230 kg, 245 kg, 295 kg, 425 kg
(507.06 lb, 540.13 lb, 650.36 lb, 936.96 lb)- Length
789 mm, 1,158 mm, 1,542 mm
(31.1 in, 45.6 in, 60.7 in)- Width
586 mm, 641 mm, 695 mm
(23.1 in, 25.2 in, 27.4 in)- Height
796 mm, 887 mm, 965 mm
(31.3 in, 34.9 in, 38 in)
Description

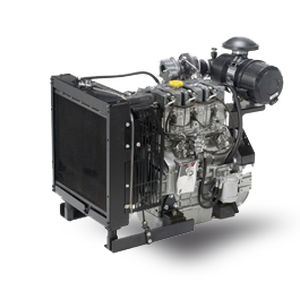

The D753E3.GEN is a 4-stroke, naturally aspirated diesel engine with direct injection, mechanical pump and turbocharger.
This water-cooled engine is suitable for use in the most difficult conditions thanks to its reliability, simplicity of use and ease of maintenance. The reduced fuel consumption and noise levels which characterize this engine are appreciated by end-users, as are its compact dimensions which make the engine easy to install.
The GEN version includes the starter motor, battery charger alternator, radiator & fan with protective shields, filters and water/oil sensors and can be coupled with any alternator. It is Stage IIIA emissions compliant. A wide range of optional accessories makes it possible to personalize the product to meet the end-user’s requirements.
Catalogs
VM-Motori
2 Pages
