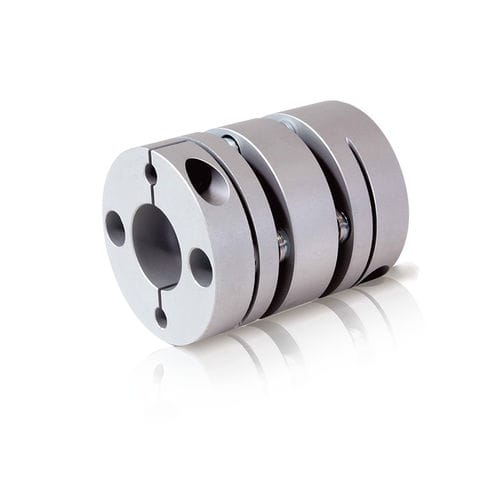

Flexible coupling SFC

discshafthigh-speed

Highlights Extremely lightweight, torsionally stiff and flexible coupling. The SFC model is a metal-disc coupling made from lightweight and high-strength aluminum alloy. The coupling provides high torsional stiffness and high response. Features High-strength aluminum alloy hubs Very low moment of inertia Highly flexible 0,25 - 250 Nm ■ High Stiffness and Ultra-low Inertia Small- and medium-capacity model, which is made of a high-strength aluminum alloy and whose outer hub diameter is linked to the shaft diameter to achieve a ultra-low inertia ideal for high-speed rotation. Three different shapes are available depending on the combination of bore diameters you use. ■ Simple and Reliable Connection A single clamping method is used for connection to the shaft. The clamping hub is shock and vibration proof, enabling reliable connection and helping to substantially reduce mounting time. A special jig is used for centering to achieve an extremely high concentricity. ■ Wide Variety of Options A wide variety of options such as a tapered shaft, length-specified special order, and keyway milling application are available. You can combine options to meet your desired specifications.
