Thermal mass flow meter GSM series
massfor gasDN15 - 1/2"

Thermal mass flow meter - GSM series - Vögtlin Instruments GmbH – Gas Flow Technology - mass / for gas / DN15 - 1/2"
Thermal mass flow meter - GSM series - Vögtlin Instruments GmbH – Gas Flow Technology - mass / for gas / DN15 - 1/2"
Thermal mass flow meter - GSM series - Vögtlin Instruments GmbH – Gas Flow Technology - mass / for gas / DN15 - 1/2" - image - 2
Thermal mass flow meter - GSM series - Vögtlin Instruments GmbH – Gas Flow Technology - mass / for gas / DN15 - 1/2" - image - 3
Thermal mass flow meter - GSM series - Vögtlin Instruments GmbH – Gas Flow Technology - mass / for gas / DN15 - 1/2" - image - 4
Thermal mass flow meter - GSM series - Vögtlin Instruments GmbH – Gas Flow Technology - mass / for gas / DN15 - 1/2" - image - 5
Add to favorites
Compare this product


Characteristics

Technology
thermal mass
Type
mass
Fluid
for gas
Pipe diameter
DN15 - 1/2", DN8 - 1/4"
Installation
threaded
Communication
4-20 mA, RS485, analog output, digital output, Modbus, PROFIBUS
Supply voltage
24 Vdc
Applications
micro-flow
Other characteristics
digital, high-accuracy, with mass flow controller
Process temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Process pressure

Max.: 11 bar
(159.54 psi)

Min.: 0.2 bar
(2.9 psi)

Precision

0.3 %, 0.5 %, 1 %

Repeatibility

0.2 %

Description

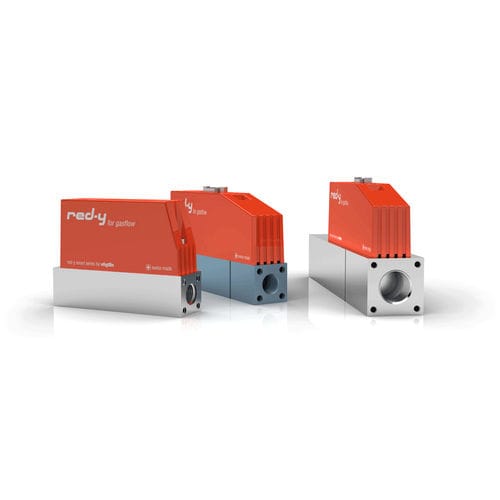

Reliable technology and industry standard interfaces make the red-y smart series thermal mass flow meters (MFM) and mass flow controllers (MFC) particularly suitable for measurement and control in gas delivery systems and plant engineering applications. Accurate Measurement The massflow devices offer high accuracy and a wide dynamic range with 2 different instrument versions “Standard” and “Hi-Performance”: Turndown ratio 1 : 100 (extended turndown ratio on request) Analog & Digital The mass flow meters and controllers of the red-y smart series make use of the latest MEMS technology and have a digital (Modbus RTU) and analog interface as standard. Operating Status Indication The measurement and control instruments offer a built-in LED status indication Safe & Fast Control The red-y smart controller uses a tightly sealed control valve with a leak rate of less than 1×10-6mbar l/s He. Response times of approx. 150 msec for very fast set point control get red-y Software Efficient device management with the free get red-y software: View flow rate & temperature Change set points Select measured gas Visualization of measured data Adjusting control parameter
