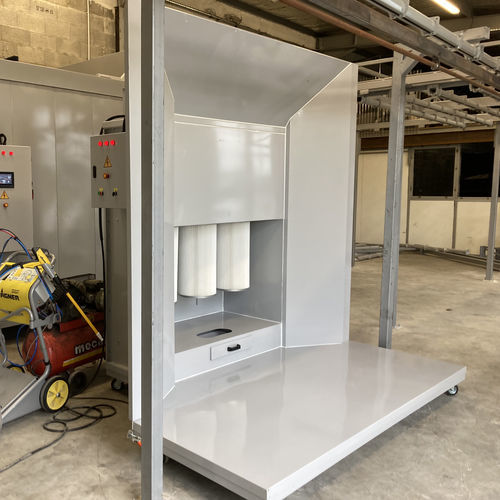

Open powder coating booth VFDK

for partsfor aeronautical applicationscartridge filter

WALL TYPE POWDER COATING BOOTH The powder booth is simple type and cost effective manual powder coating solution for small work shops. It saves a space and gives a flexibility in powder coating application from one side coating of small work pieces. The powder booth can be combined with a bar transfer system conveyors or could have simple conveyor track as well according to the project. WORKING PRINCIPLE Powder particles moving by airflow created by the exhaust fan and are prevented to exit out upon filtering. Suction fan is mounted at the top of the booth. Air movement generated by the fan carries the powder particles to the filter unit and collects them to the outer surface of the filters. Filters are cleaned by means of the automatic pull-reverse cleaning system during the operation. POWDER RECYCLING As a result of the filter cleaning system, powder particles falls down where are collected inside a bucket under the filter unit. This bucket optionally can have a simple drawer or a sieve and with vibration motor in order to sieve collected powder on it and to be reused including a powder pump in order to transfer sifted powder and to be sent to powder recovery system in order to be reused.
